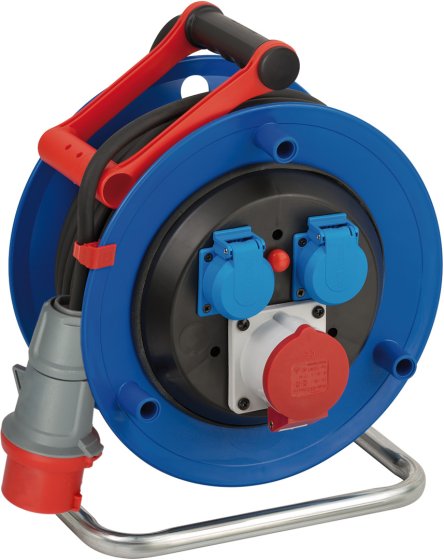

Garant CEE 1 IP44 cable reel 30m H07RN-F 5G1.5
Description
Description
- Reel body made from special plastic fitted to a galvanised steel tube frame.
- Innovative and ergonomic cable guide handle "cable pilot" for perfect cable-management during winding. Handle commutes on both sides and allows easy carrying and cable storage. For right and left handed easy to rewind.

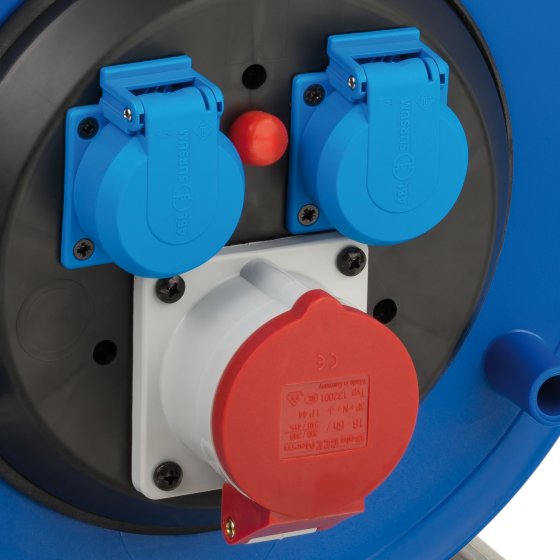

- 1 CEE-plug 400 V/16 A,
2 water-jet protected sockets 230 V.
- Cable quality: Rubber-neoprene (RN), robust, oil-resistant and especially suited for professional use.
- Earthed sockets connected to separate phases.
- With 3-pin safety cut-out and thermal overload protection.
Technical data
Technical data
- Cable designation: H07RN-F 5G1,5
- Cable length: 30 m
- Cable quality: Rubber-Neoprene, Rubber-Neoprene
- Capacity in coiled state 230V: 1200 W
- Capacity in uncoiled state 230V: 3000 W
- With residual current circuit breaker (RCCB): No
- Nominal input voltage: 400 V, 230 V
- With Bretec: No
- Reel diameter: 290 mm
- With CABLEPILOT: Yes
- With carrying handle: Yes

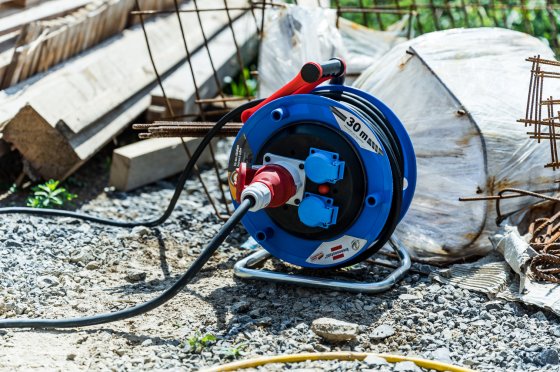

- Usage: Trade/ construction sites
- Housing material: Plastic
- With plug storage: No
- Number of CEE socket outlets: 1
- Number of earthed socket outlets: 2
- Degree of protection (IP): IP44
- Area of use: Outdoor
- Height: 37 cm
- Length: 23,70 cm
- Weight: 7,69 kg
- Width: 29 cm
- Capacity in coiled state 400V 16A: 2400 W
- Capacity in uncoiled state 400V 16A: 8000 W
Scope of supply
Scope of supply
Garant CEE 1 IP44 cable reel
