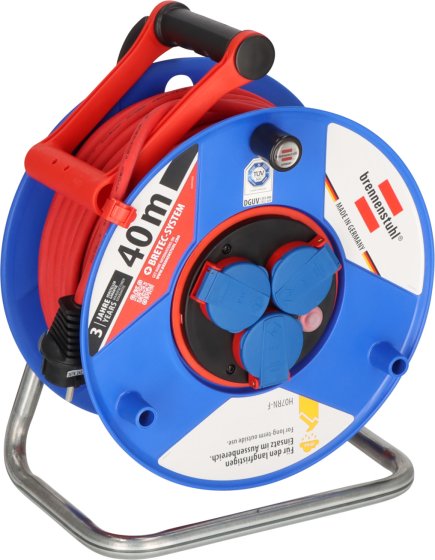

Garant Bretec IP44 commercial/construction site Cable Reel 40m (made of special plastic, for construction site use and permanent outdoor use, Made in Germany)

Name: Garant Bretec IP44 cable reel for site & professional 40m H07RN-F 3G1,5
Brand: Brennenstuhl
SKU: 1208930

Article number 1208930

EAN 4007123053896

40m cable length (H07RN-F 3G1,5) RN cable - very robust, oil-resistant and particularly suitable for professional use - approved for difficult construction conditions according to VDE 0100 part 704
Outdoor Cable Reel with overheating protection, indicator light in case of overheating and overload and a reel body made of special plastic on a galvanised carrying frame
Innovative carrying handle "cablepilot" ensures perfect cable routing and prevents the cable from slipping when rolling up and down - allows free hands during transport and practical hanging up

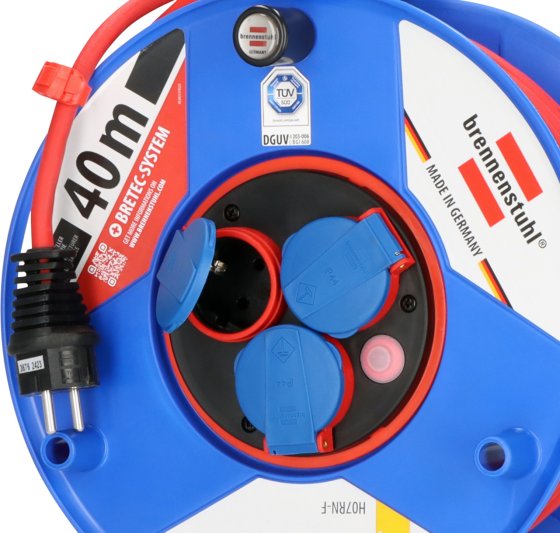

3 protective contact sockets, splash-proof, with self-closing lids
With the Bretec rotary contact system, the reel rotates without the socket insert rotating with it - This allows the cable to be unwound even when electrical appliances are connected, without their cables twisting

Article number 1208930

EAN 4007123053896

Description

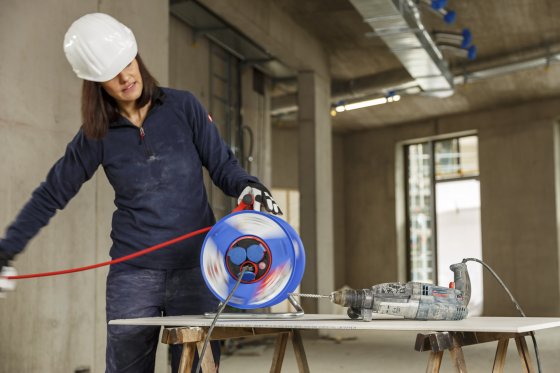

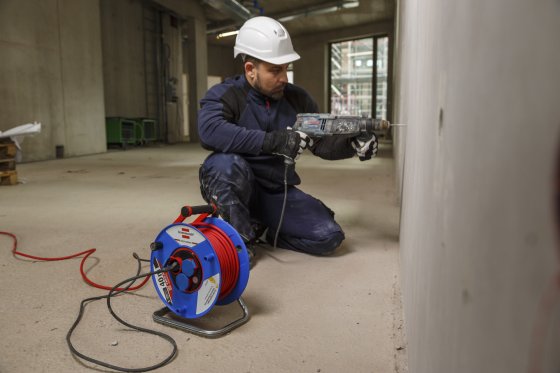

The Garant Bretec IP44 commercial/building site Cable Reel with 40m cable length convinces with its quality and safety in all areas. Ideally suited for construction site use and outdoor use. The Bretec® rotary contact system allows the cable drum to be rolled up or unrolled without connected cables twisting. It also convinces with the following features:

With twist handle for comfortable reeling
RN cable is approved for difficult construction conditions according to VDE 0100 part 704
Innovative carrying handle "cablepilot" for perfect cable guidance. Swings on both sides for convenient carrying and hanging
Protection class: IP44
Cable length: 40m
Cable designation: H07RN-F 3G1.5
Cable quality: Rubber neoprene
Cable colour: Red
Reel diameter: 290mm

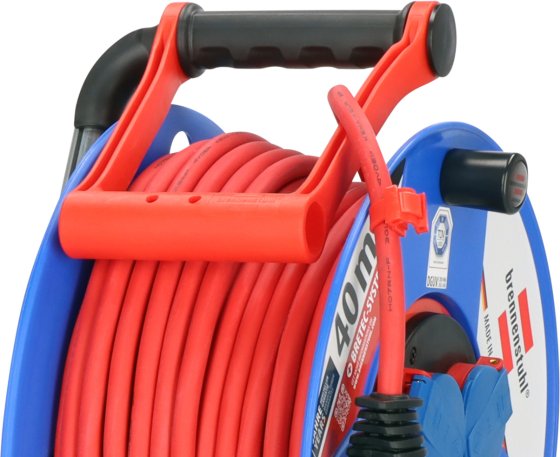

Cablepilot

Prevents the cable from slipping off the cable reel
Guides the cable onto the drum during rewinding
Ensures even distribution of the cable on the reel
Practical carrying handle that can also be used to hang up the cable reel
Can be rolled up from both sides

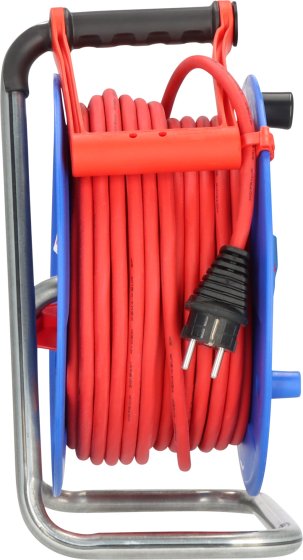

Plug garage for storing the plug

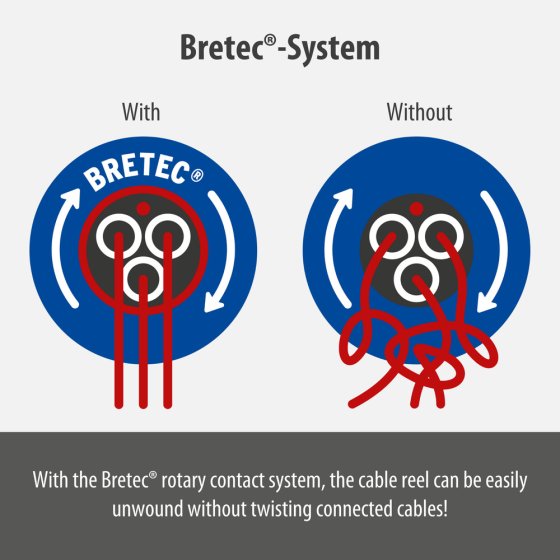

Bretec® rotary contact comfort

Due to the rotary contact technology, only the Cable Reel rotates during unwinding and rewinding, not the insert. This allows the cable to be unwound even when the plug is connected to the supply point or when electrical appliances are connected, without their cables becoming twisted.

Technical data

Cable designation: H07RN-F 3G1,5
Cable length: 40 m
Cable quality: Rubber-Neoprene, Rubber-Neoprene
Capacity in coiled state 230V: 1000 W
Capacity in uncoiled state 230V: 3100 W
With residual current circuit breaker (RCCB): No
Nominal input voltage: 230 V
With Bretec: Yes
Reel diameter: 290 mm
With CABLEPILOT: Yes
With carrying handle: Yes
Usage: Trade/ construction sites
Housing material: Plastic
With plug storage: Yes
Number of CEE socket outlets:
Number of earthed socket outlets: 3
Degree of protection (IP): IP44
Area of use: Outdoor
Height: 37 cm
Length: 19 cm
Weight: 6,80 kg
Width: 29 cm

Downloads

Accessories

1081000

Drum step for cable reel Ø 240/290mm (Ø 18mm pipe)

All products are subject to technical changes
