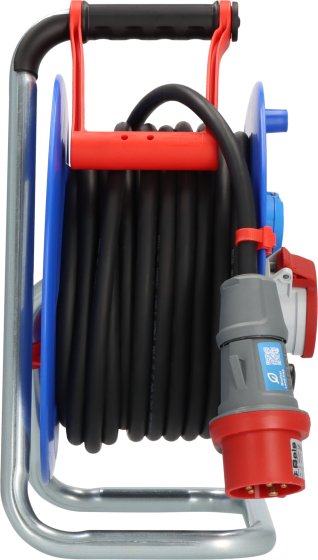

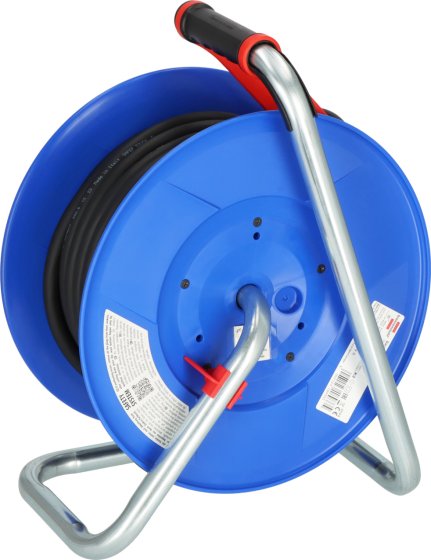

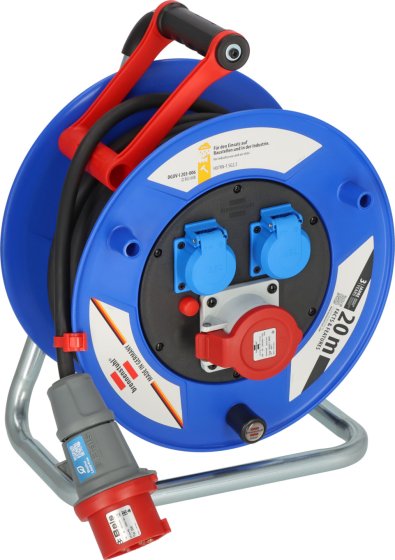

Garant CEE 1 IP44 industrial/construction site cable reel for construction site use and permanent outdoor use (20m cable, made of special plastic, DGUV 203-006, Made in Germany)
Description

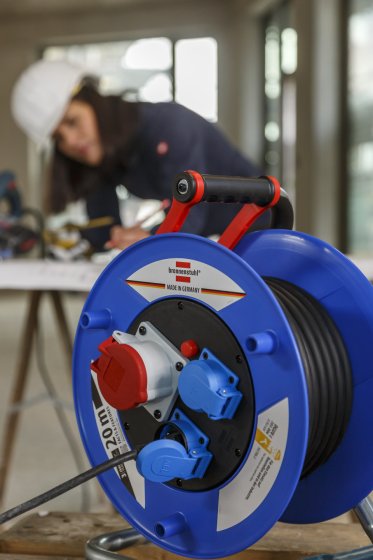

The Garant CEE 1 IP44 industrial/construction site cable reel with 20m cable length in the colour black impresses with its quality and safety in all areas. The cable reel is ideal for use on construction sites and permanent outdoor use. It impresses with its twist handle for easy reeling and the following features:
- Innovative ‘cablepilot‘ carrying handle for perfect cable routing. Swings on both sides and enables convenient carrying and hanging
- Complies with EN 61316
- Complies with DGUV 203-006
- RN cable is approved for difficult building conditions in accordance with VDE 0100 Part 704
- Protection class IP44
- In accordance with EN 61316

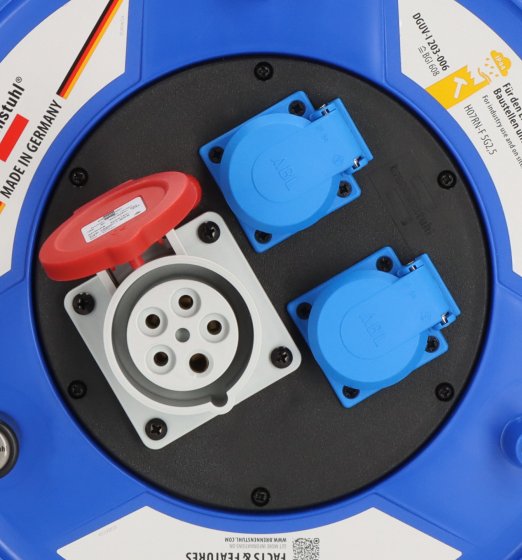

- Earth contact sockets distributed on separate phases
- Cable length 20m
- Cable designation H07RN-F 5G2.5
- Cable quality rubber-neoprene
- Cable colour black
- Reel diameter 320mm

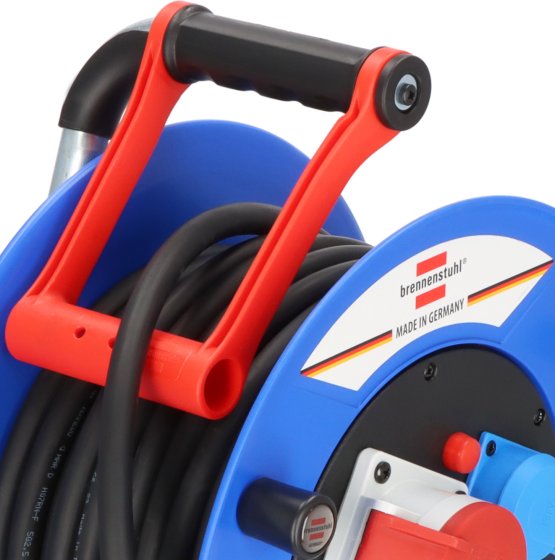

The "cablepilot" is a revolutionised cable reel handle that is equipped with useful features and makes reeling the cable much easier. Features include:
- Prevents the cable from slipping off the cable reel
- Guides the cable onto the drum during rewinding
- Ensures even distribution of the cable on the reel
- Practical carrying handle that can also be used to hang up the cable reel
- Can be rolled up from both sides
- Plug garage for storing the plug
An additional feature of the "cablepilot" is the plug garage. Each "cablepilot" has a plug garage consisting of two holes on the carrying handle. After the cable has been rolled up, the plug can simply be put into the plug garage for safe storage.
Technical data
- Cable designation: H07RN-F 5G2,5
- Cable length: 20 m
- Cable quality: Rubber-Neoprene, Rubber-Neoprene
- Capacity in coiled state 230V: 1800 W
- Capacity in uncoiled state 230V: 3000 W
- With residual current circuit breaker (RCCB): No
- Nominal input voltage: 230 V, 400 V
- With Bretec: No
- Reel diameter: 320 mm
- With CABLEPILOT: Yes
- With carrying handle: Yes
- Usage: Industry/ construction sites
- Housing material: Plastic
- With plug storage: Yes
- Number of CEE socket outlets: 1
- Number of earthed socket outlets: 2
- Degree of protection (IP): IP44
- Area of use: Outdoor
- Height: 42 cm
- Length: 19 cm
- Weight: 8,22 kg
- Width: 30 cm
- Capacity in coiled state 400V 16A: 4200 W
- Capacity in uncoiled state 400V 16A: 8000 W
Downloads
All products are subject to technical changes
