Description
Description
- Reel body made from rust-resistant and galvanised sheet steel.

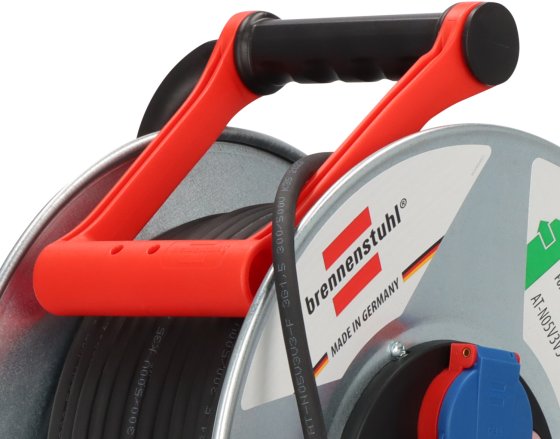

- Innovative and ergonomic cable guide handle "cable pilot" for perfect cable-management during winding. Handle commutes on both sides and allows easy carrying and cable storage. For right and left handed easy to rewind.
- Rotary handle for comfortable rolling up.
- The BREMAXX®-cable is extremely sturdy, applicable down to -35 °C, oil- and UV-resistant and highly abrasion-resistant.

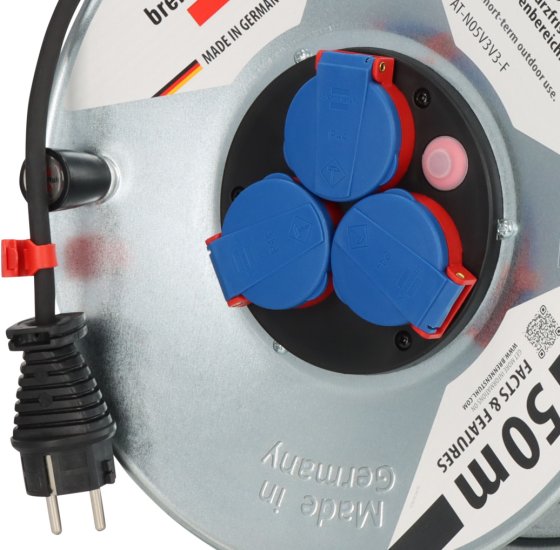

- 3 water-jet protected earthed socket outlets with self-closing protective caps.
- Thermal cut-out protection, indicator shows overheating or overloading.
Technical data
Technical data
- Cable designation: AT-N05V3V3-F 3G1,5
- Cable length: 50 m
- Cable quality: BREMAXX, BREMAXX
- Capacity in coiled state 230V: 1000 W
- Capacity in uncoiled state 230V: 3300 W
- With residual current circuit breaker (RCCB): No
- Nominal input voltage: 230 V
- With Bretec: No
- Reel diameter: 290 mm
- With CABLEPILOT: Yes
- With carrying handle: Yes
- Usage: Outdoor
- Housing material: Sheet steel
- With plug storage: Yes
- Number of CEE socket outlets: 0
- Number of earthed socket outlets: 3
- Degree of protection (IP): IP44
- Area of use: Outdoor
- Height: 36,50 cm
- Length: 27,50 cm
- Weight: 6,82 kg
- Width: 19 cm
Scope of supply
Scope of supply
Garant S IP44 cable reel
