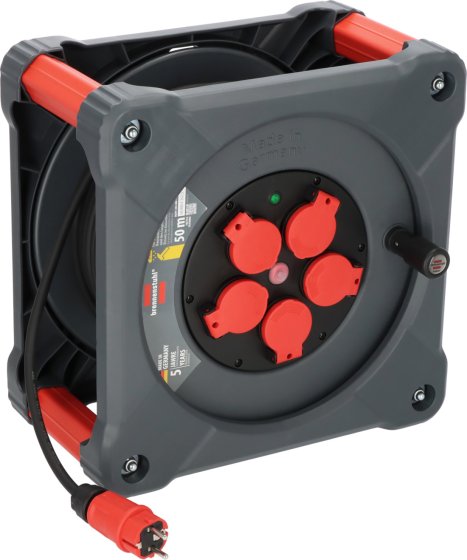

Professional cable reel KA 5100 5 IP44 with all-round roll-over protection (50m H07RN-F 3G1.5 cable, construction site use and permanent outdoor use, 5 protective contact sockets, Made in Germany)

new

Article number 9201500110

EAN 4007123687527

Cable reel with 50m cable length and all-round roll-over protection - for use on construction sites in accordance with DGUV 203-006 (formerly BGI 608) and permanent outdoor use
Sturdy cable reel with RN cable (H07RN-F 3G1.5) - very robust, oil-resistant and particularly suitable for professional use
Cable reel with 5 protective contact sockets (splash-proof, with self-closing lids) and extra robust protective contact plug
Housing and drum material made of a plastic-rubber mixture - extremely shock and impact resistant and suitable for continuous use under the toughest conditions
Outdoor cable reel with overheating protection, indicator light for overheating and overloading and practical reel brake that prevents the cable from unwinding during transport

Article number 9201500110

EAN 4007123687527

33 m
50 m

Description

The Professional 50m cable reel with a housing and reel material made of a plastic-rubber mix is extremely shock and impact resistant. Thanks to the IP44 protection rating and the extremely robust and oil-resistant RN cable, it is also suitable for long-term use in the toughest outdoor conditions. Thanks to the all-round roll-over protection, the cable reel is stable on all four sides and also offers perfect cable routing on all four sides. The extension cable reel with 5 splash-proof protective contact sockets has overheating protection with an indicator light for overheating and overloading and a visual readiness indicator in the socket insert. The professional cable reel with carrying handles and plug garage on all four sides also impresses with the following features:

Large, sturdy folding swivel handle for effortless winding and unwinding of the cable
Reel body cold impact resistant down to -25 °C
With drum brake
Protection class: IP44
Cable length: 50m
Cable designation: H07RN-F 3G1.5
RN cable is approved for difficult building conditions in accordance with VDE 0100 Part 704
Cable colour: black
Category 2 equipment (K2 DGUV 203-005): For use in harsh operating conditions with high mechanical, physical and chemical impacts
Power when wound up 230V: 1000W
Power when unwound 230V: 3000W

Technical data

Cable designation: H07RN-F 3G1,5
Cable length: 50 m
Cable quality: Rubber-Neoprene, Rubber-Neoprene
Capacity in coiled state 230V: 1000 W
Capacity in uncoiled state 230V: 3000 W
With residual current circuit breaker (RCCB): No
Nominal input voltage: 230 V
With Bretec: No
Reel diameter: 320 mm
With CABLEPILOT: No
With carrying handle: Yes
Usage: Trade/ construction sites
Housing material: Plastic
With plug storage: Yes
Number of CEE socket outlets:
Number of earthed socket outlets: 5
Degree of protection (IP): IP44
Area of use: Outdoor
Height: 37 cm
Length: 22 cm
Weight: 10,33 kg
Width: 37 cm
Additional cable length: 0 m

Scope of supply

Professional construction site cable reel KA 5100 5
