CEE Camping Adapter Cable 1.5m cable in orange (CEE plug and angled coupling incl. earth contact combination socket, 230V/16A, for long-term outdoor use, Made in Germany)

- The right cable length on the campsite

Article number 1132920525

EAN 4007123673858

CEE adapter cable for camping and caravans with CEE angled coupling + earth contact combination socket is ideally suited for robust and long-term outdoor use, IP44
CEE extension cable with 2.5mm² - ideal for e.g. caravans, camping, caravan or on the boat
Camping adapter cable with 1.5m RN cable (H07RN-F 3G2.5) made of flexible neoprene is very robust and oil-resistant - in the signal colour orange
CEE extension cable with CEE plug and angled coupling (230V/16A) including earth contact combination socket (230V) with self-closing cover - perfect for camping
The adapter cable is ideally suited for permanent outdoor use thanks to the IP44 protection rating and the oil-resistant RN cable

Article number 1132920525

EAN 4007123673858

Description

The CEE adapter cable from Brennenstuhl has a CEE plug and angled coupling including a earth contact combination socket.Thanks to the IP44 protection class and the oil-resistant RN cable, the adapter cable is ideally suited for permanent outdoor use, such as for caravans, motor homes, camping or even on boats. The caravan adapter cable with has the signal colour orange for extra safety. It is not only extremely robust, but also convinces with the following features:

Cable length: 1,5m
Cable designation: H07RN-F 3G2.5
Cable quality: rubber-neoprene

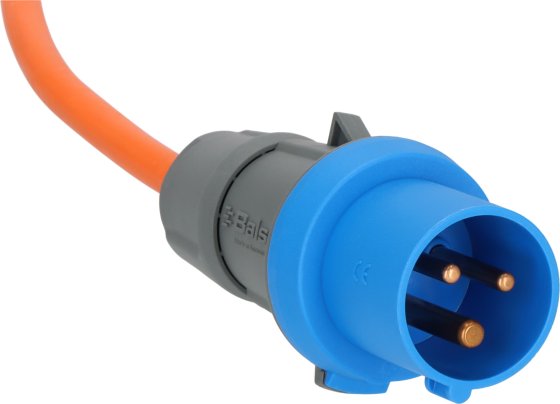

Plug system plug: CEE 230V/16A

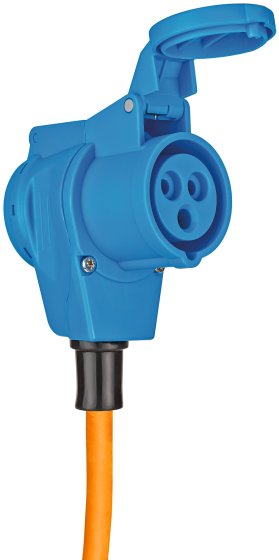

Connection: CEE angle coupling, earthing contact plug
Made in Germany

The right wire diameter

A minimum cross-section of 2.5mm is specified for the connection of caravans and motor homes with a rated current of 16A.
A smaller conductor cross-section is not permitted for connecting caravans or motor homes on campsites.

The right cable length on the campsite

The continuous maximum length of 25 m cable (+/- 2 m) for connecting the caravan must not be exceeded.

The right connection cable

The correct connection cable is so-called heavy rubber hose cable with the cable designation H07RN-F (or equivalent).
Rubber cables are protected against petrol, oils and other liquids, are insensitive to the effects of weather and UV radiation and, unlike hard plastic, do not become porous.

Technical data

Cable designation: H07RN-F 3G2,5
Cable length: 1,50 m
Cable quality: Rubber-Neoprene, Rubber-Neoprene
With residual current circuit breaker (RCCB): No
Nominal input voltage: 250 V
Oil-resistant: Yes
Connection: CEE plug, CEE angle coupling
Degree of protection (IP): IP44
Suitable for outdoor area: Yes
Height: 7 cm
Length: 18,50 cm
Weight: 0,59 kg
Width: 18,50 cm

Scope of supply

CEE Extension Cable IP44 For Camping/Maritim

Downloads

Instruction Manual (515.86 KB)

Accessories

1160670

Fastening and fixing strap

All products are subject to technical changes
