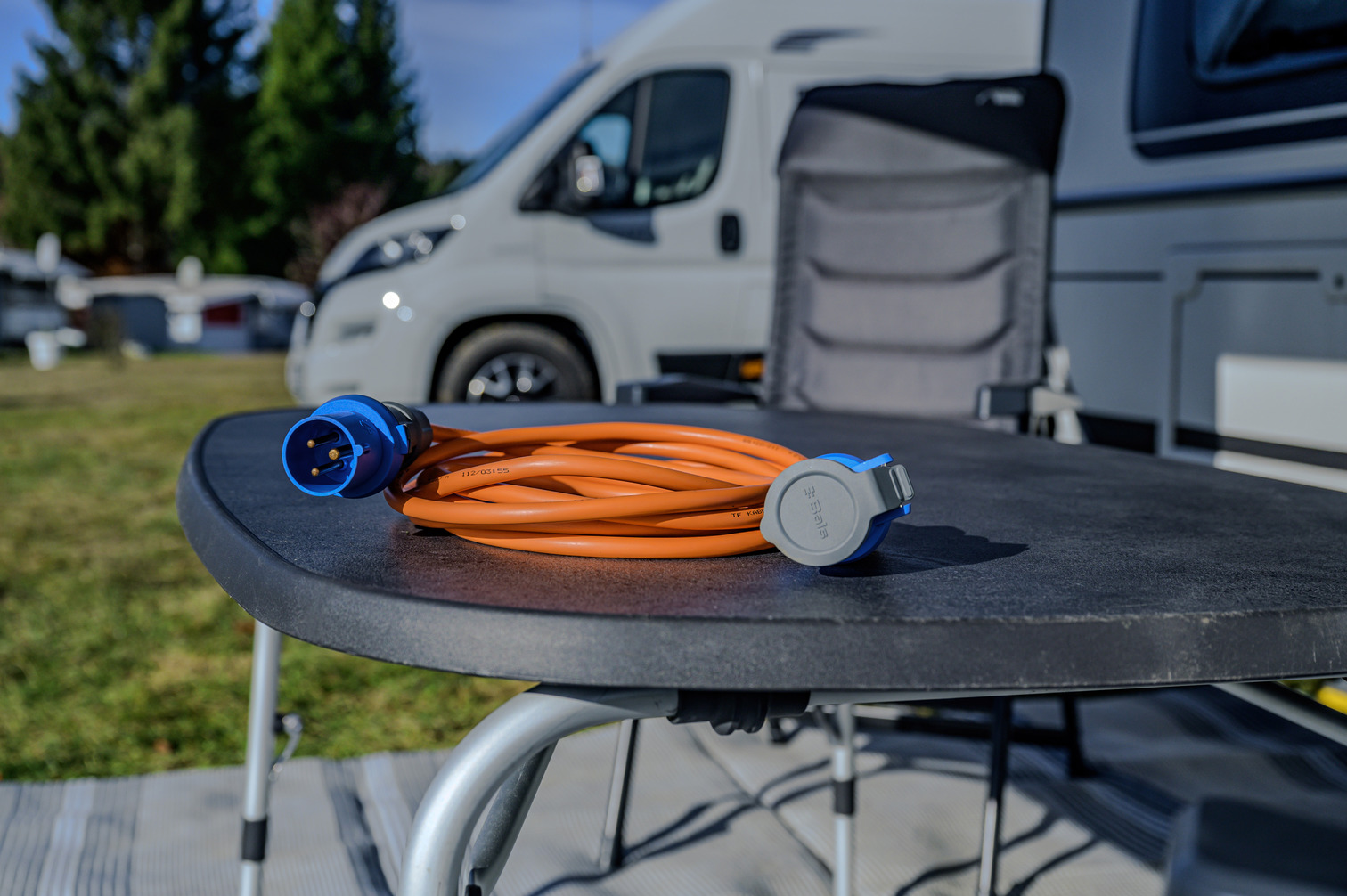

CEE extension cable 5m (Camping extension lead H07RN-F 3G2.5 in orange with CEE plug and socket with sealing cap, for permanent outdoor use, Made in Germany)
Description
Description
The caravan extension lead IP44 in the colour orange and 5m cable impresses with its quality and safety in all areas. Thanks to the special rubber cable this is ideal for camping and permanent outdoor use. In addition, the socket is equipped with a closing flap and is therefore protected from dirt and splash water. Furthermore, the CEE extension lead convinces with the following features:
- Cable quality rubber-neoprene

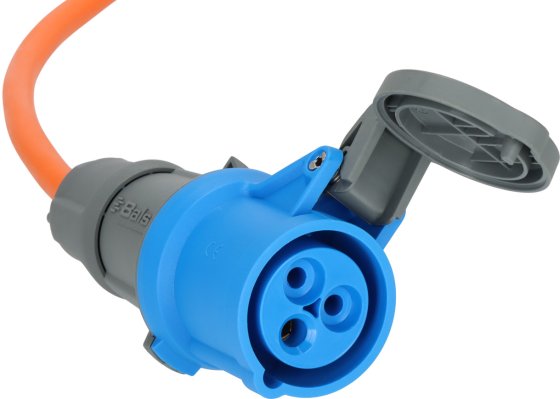

- Socket: CEE 230V/16A

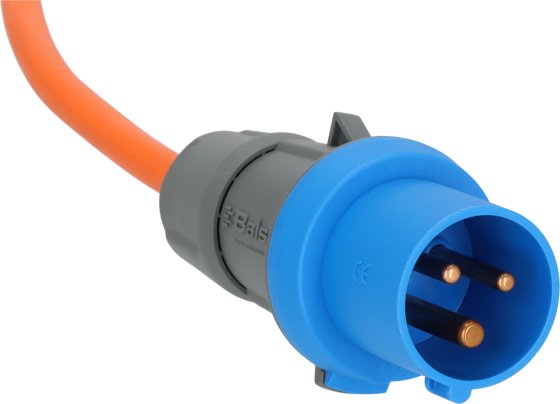

- Plug: CEE 230V/16A
The right wire diameter
- A minimum cross-section of 2.5mm is specified for the connection of caravans and motor homes with a rated current of 16A.
- A smaller conductor cross-section is not permitted for connecting caravans or motor homes on campsites.
The right connection cable
- The correct connection cable is so-called heavy rubber hose cable with the cable designation H07RN-F (or equivalent).
- Rubber cables are protected against petrol, oils and other liquids, are insensitive to the effects of weather and UV radiation and, unlike hard plastic, do not become porous.
Signal colours on the campsite
- The orange signal colour makes you and people in the vicinity aware of cables lying around and potential tripping hazards.
The right cable length on the campsite
- The continuous maximum length of 25 m cable (+/- 2 m) for connecting the caravan must not be exceeded.
- With cable drums, the cable must always be completely unrolled when in use!
Technical data
Technical data
- Cable designation: H07RN-F 3G2,5
- Cable length: 5 m
- Cable quality: Rubber-Neoprene, Rubber-Neoprene
- With residual current circuit breaker (RCCB): No
- Nominal input voltage: 230 V
- Oil-resistant: Yes
- Connection: CEE plug, CEE coupling
- Degree of protection (IP): IP44
- Suitable for outdoor area: Yes
- Height: 9,50 cm
- Length: 19,50 cm
- Weight: 1,28 kg
- Width: 19,50 cm
Scope of supply
Scope of supply
CEE Extension Cable
