Primera-Tec Power Strip 7-way with overvoltage protection 19.500A (Extension Lead with 2m cable, switch, 2 permanent, 1 main and 4 follow sockets)

Article number 1153300477

EAN 4007123636402

The Master-Slave or Main-Follow technology is the automatic switching system for power strips (1 Main + 4 Follow)
Main-Follow power socket: 1 Main + 4 Follow = automatic switching system - incl. digital storage of the settings of the Main unit

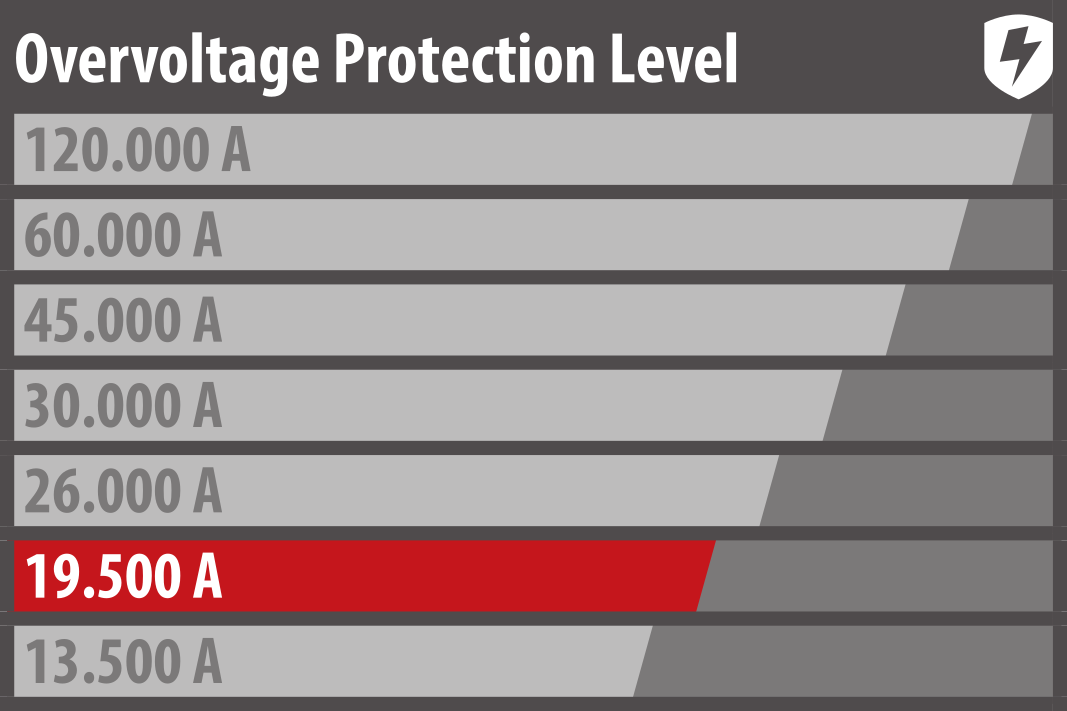

Protects valuable equipment from overvoltages with a max. leakage current of up to 19,500A (protection during thunderstorms, lightning strikes, etc.)
Extension lead with illuminated safety switch for switching on and off (two-pole) and practical 90° arrangement of sockets
If the device connected to the main socket is switched on, the follow sockets are also switched on - If no current flows through the main socket, the follow sockets are switched off

Article number 1153300477

EAN 4007123636402

Description

The Primera-Tec 7-way extension lead with 2 permanent, 1 main and 4 follow sockets (alternatively 7 permanent sockets), surge protection and 2m cable impresses with its quality and safety in all areas. It not only has increased protection against accidental contact, but also impresses with the following features:

Shapely and stable housing due to polished, highly break-proof polycarbonate
Optical function indicator for overvoltage protection
Protects valuable equipment from overvoltages with a max. leakage current of up to 19,500A
With the on/off switch of the unit, which is plugged into the main socket, all units in the follow sockets can be switched on and off automatically as well
Digital: Stores the correct setting for your main unit at the touch of a button.
Advanced: Switches your Follow units safely and gently using the latest technology
Variable cable outlet possible on both sides
Safety switch illuminated, two-pole on/off switchable
With fixing lugs for wall mounting
Rated current 16A

Technical data

Cable designation: H05VV-F 3G1,5
Cable length: 2 m
Height: 57,50 cm
Length: 7 cm
Weight: 0,89 kg
Width: 10 cm
Colour: black
Usage: Household
Type of fastening: Fastening with screw
With surge protection: Yes
Max. electr. load capacity: 3500 W
Protection: Not applicable
With residual current circuit breaker (RCCB): No
Nominal input voltage: 230 V
Type of plug: Angle plug
Number of socket outlets total: 7
Socket outlet arrangement: 90°
USB type output socket: Not applicable
Degree of protection (IP): IP20
Suitable for outdoor area: No
Cable quality: PVC, PVC
Suitable for 19 inch rack mounting: No
Suitable for built-in mounting: No
With hand/ foot switch: No
With wireless control: No
With interference suppressor filter: No
Main Follow function: Yes
Surge current: 19500 A

Scope of supply

Primera-Tec 19.500A extension lead with surge protection

Downloads

Instruction Manual (3.48 MB)
