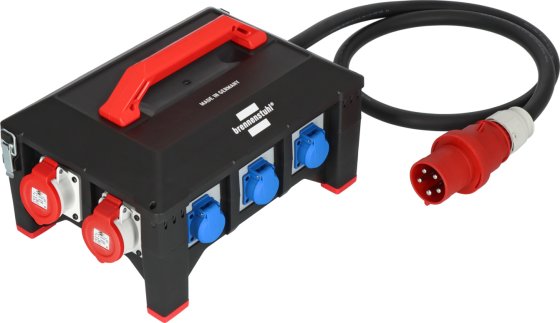

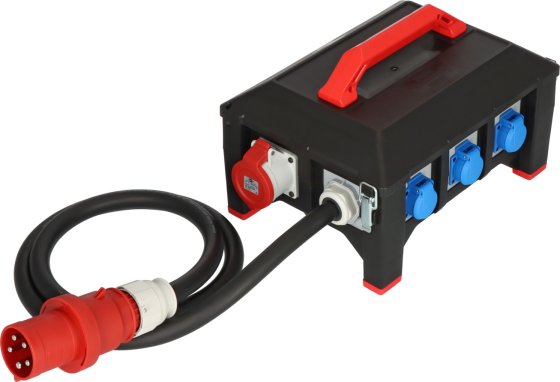

Professional Rubber Construction Power Distributor BSV 5-63A with all-current sensitive RCD type B (Power Distributor with 63A CEE plug, 2m RN cable, sockets: 1xCEE 400V/32A, 2xCEE 400V/16A, 6x protective contact 230V, complies with DIN VDE 0100-704, Made in Germany)

Name: Professional Construction Power Distributor BSV 5-63A FI Typ B 2m H07RN-F 5G16,0 1xCEE32A+2x16A,6x230V
Brand: Brennenstuhl
SKU: 9150630168

new

Article number 9150630168

EAN 4007123687930

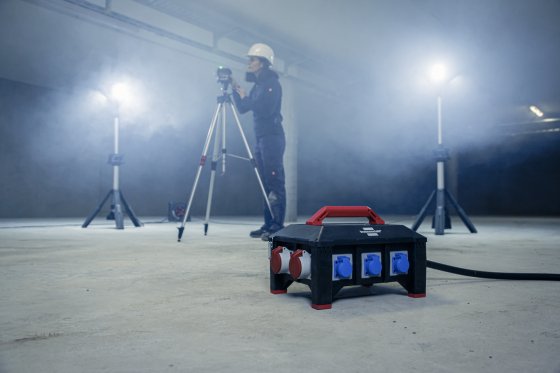

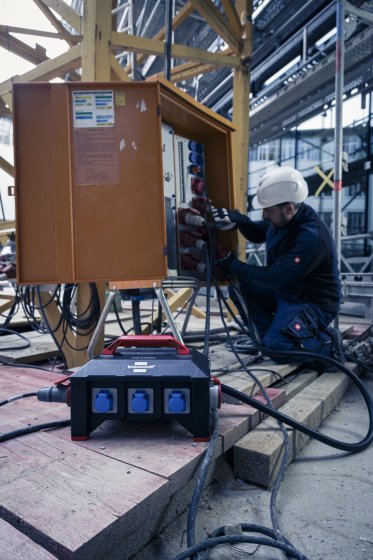

Construction Site Power Distributor with RCD type B (all-current sensitive) - this type B residual current device ensures increased safety for people and the environment and is also required on construction sites
Power Distributor for permanent outdoor use with 2m oil-resistant rubber cable (H07RN-F 5G16,0) and a splash-proof housing made of a special rubber compound (resistant from -30°C to +80°C)

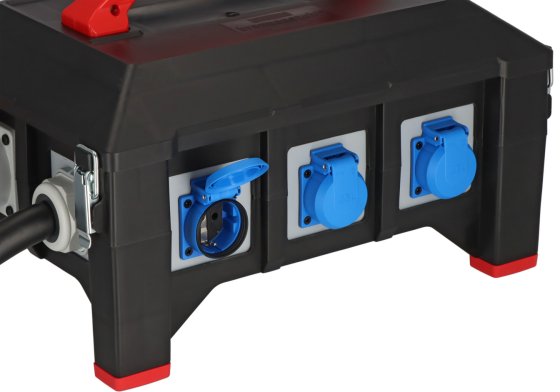

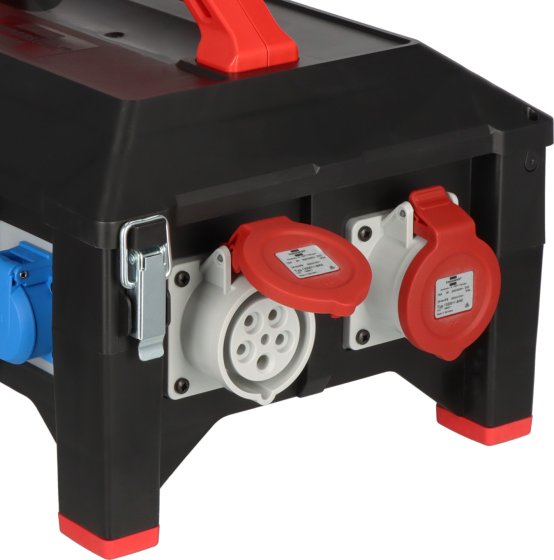

Robust, impact-resistant, ageing and weather-resistant Construction Site Power Distributor with quality sockets in accordance with VDE 0620-2-1 and CEE sockets with nickel-plated contacts - made for tough use on construction sites
Rubber Power Distributor with practical carrying handle for convenient transport and extremely high, non-slip rubber feet to prevent floor contamination

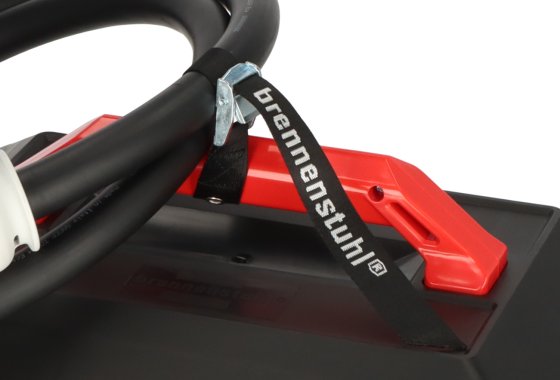

The Rubber Power Distributor complies with DIN VDE 0100-704 and is equipped with a type B RCD (RCD and circuit breaker fuse elements inside the distributor) and a strap for securing the cable

Article number 9150630168

EAN 4007123687930

Description

The Professional Rubber Power Distributor with 2m oil-resistant RN cable (H07RN-F 5G16,0) is used to increase safety for people and the environment on construction sites thanks to the type B residual current device. This RCD is based on the VDE 0100-704:2018-10 standard and will ensure even greater safety on construction sites in future. The type B residual current device is required because smooth or almost smooth DC residual currents occur that are not recognised by a type A residual current circuit breaker. Comprehensive personal and system protection is therefore only guaranteed with a type B residual current device that is sensitive to all currents (complies with the new DIN VDE 0100-704 standard). The extremely robust site power distribution board with self-closing cover with practical quick-release fastener and robust hinges is resistant to various oils, greases, petrol and acids, UV and ozone radiation and also impresses with the following features:

With RCD type B (all-current sensitive) circuit breaker 30mA

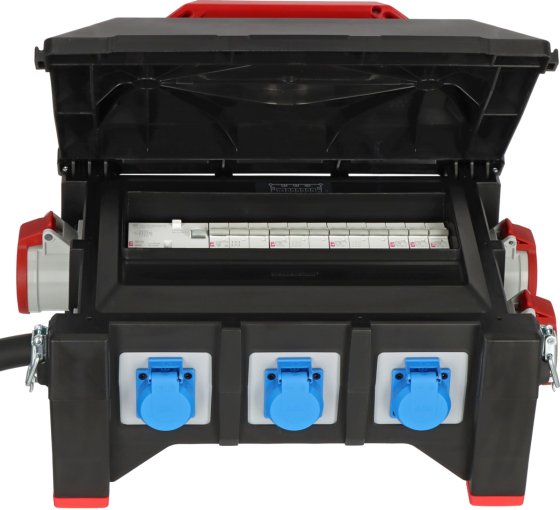

With the RCDs and MCBs, the power distribution board offers a high level of operational safety
Connected load from 11 to 44 kVA
Operation of several consumers at one three-phase/power current connection point with plug-in systems in accordance with IEC 60309
Eligible for members of BG Bau
Cable designation: H07RN-F 5G16,0
Protection class: IP44
Rated current (RCD): 63A
Number of poles (RCD): 4

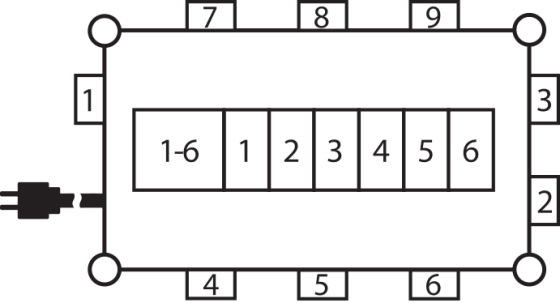

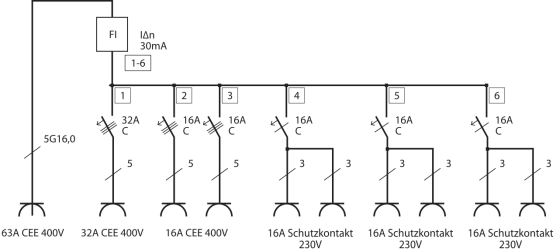

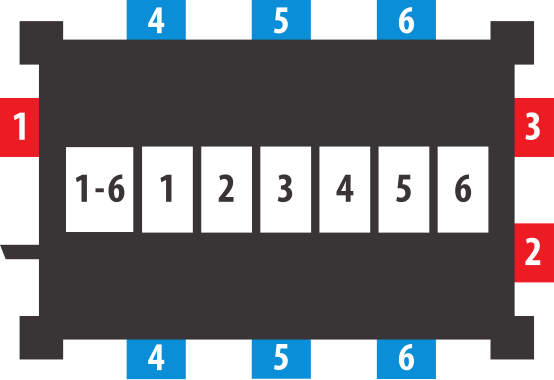

Number of miniature circuit breakers: 6 (1x MCB 400V/32A 3-pole/pin; 2x MCB 400V/16A 3-pole/pin; 3x MCB 230V/16A 1-pole/pin)
Plug connector system: CEE 63A 3P+N+PE (5p) 400V
CEE socket outlet - 16A: CEE 2x 16A 3P+N+PE (5p) 400V
CEE socket outlet - 32A: CEE 1x 32A 3P+N+PE (5p) 400V
Sockets with earthing contact: 6
RCD: RCD with IFN 0.03 A (standard)
For construction site use in accordance with DGUV 203-006 (formerly BGI 608) and permanent outdoor use
Category 2 equipment (K2 DGUV 203-005): For use in harsh operating conditions with high mechanical, physical and chemical impacts

Technical data

Height: 30 cm
Length: 31 cm
Weight: 10,12 kg
Width: 58 cm
Nominal input voltage: 400 V
With carrying handle: Yes
Housing material: Plastic/ rubber
Number of CEE socket outlets total: 3
Number of socket outlets total: 9
Degree of protection (IP): IP44
Suitable for outdoor area: Yes
Cable designation: H07RN-F 5G16,0
Cable length: 2 m
Cable quality: Rubber-Neoprene, Rubber-Neoprene
Residual current circuit breaker (RCCB): FI with IFN 0.03 A (standard)
Number of earthed socket outlets: 6

Scope of supply

Professional Rubber construction site power distributor BSV 5-63A FI type B, fixing strap

Downloads

Instruction Manual (2.88 MB)

All products are subject to technical changes
