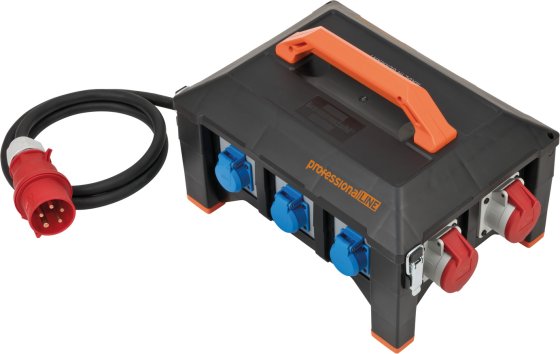

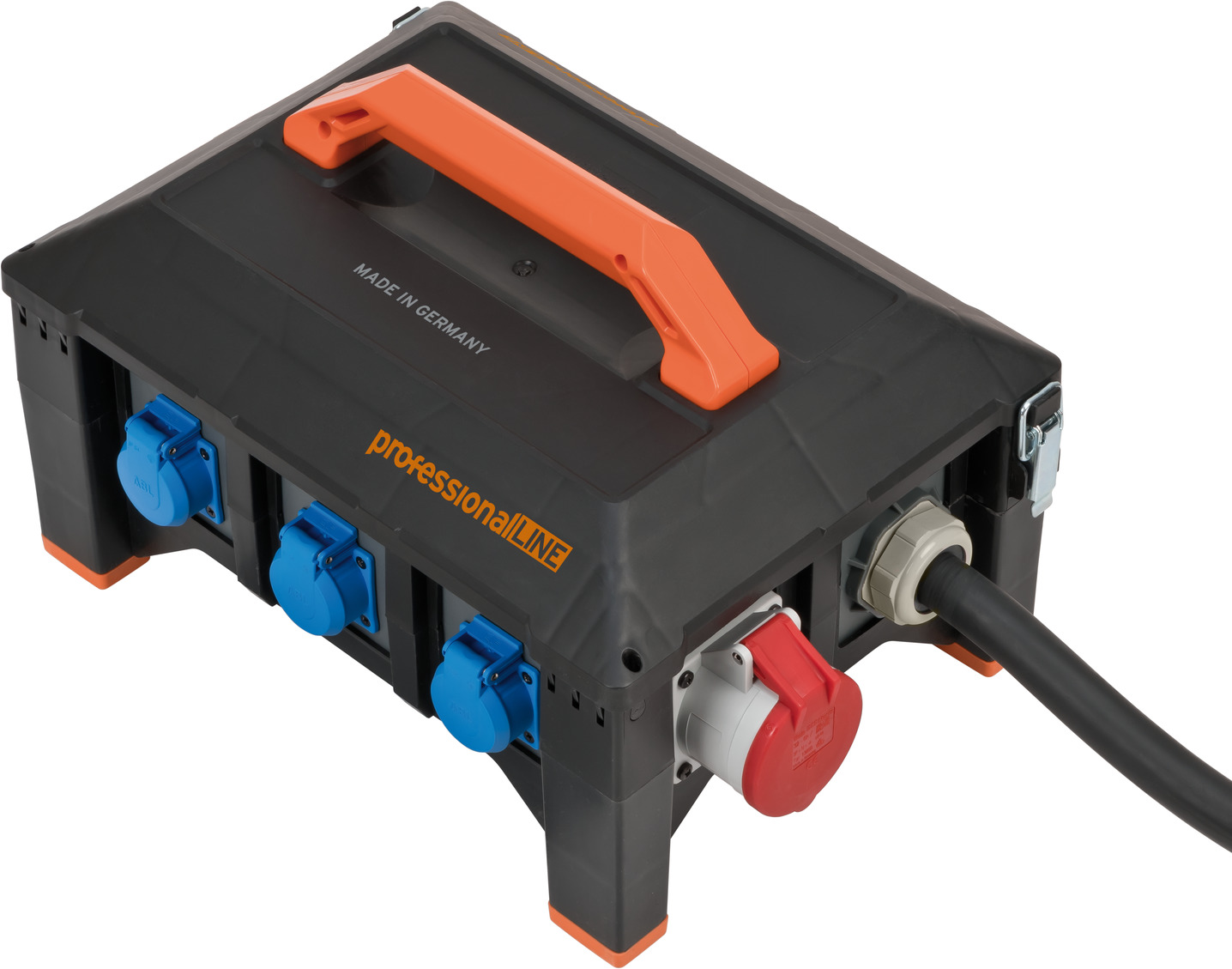

Rubber power distributor with 2m cable H07RN-F 5G6,0 (1xCEE 400V/32A, 2xCEE 400V/16A, 6x earthed socket 230V, for permanent outdoor use, Made in Germany)
Description

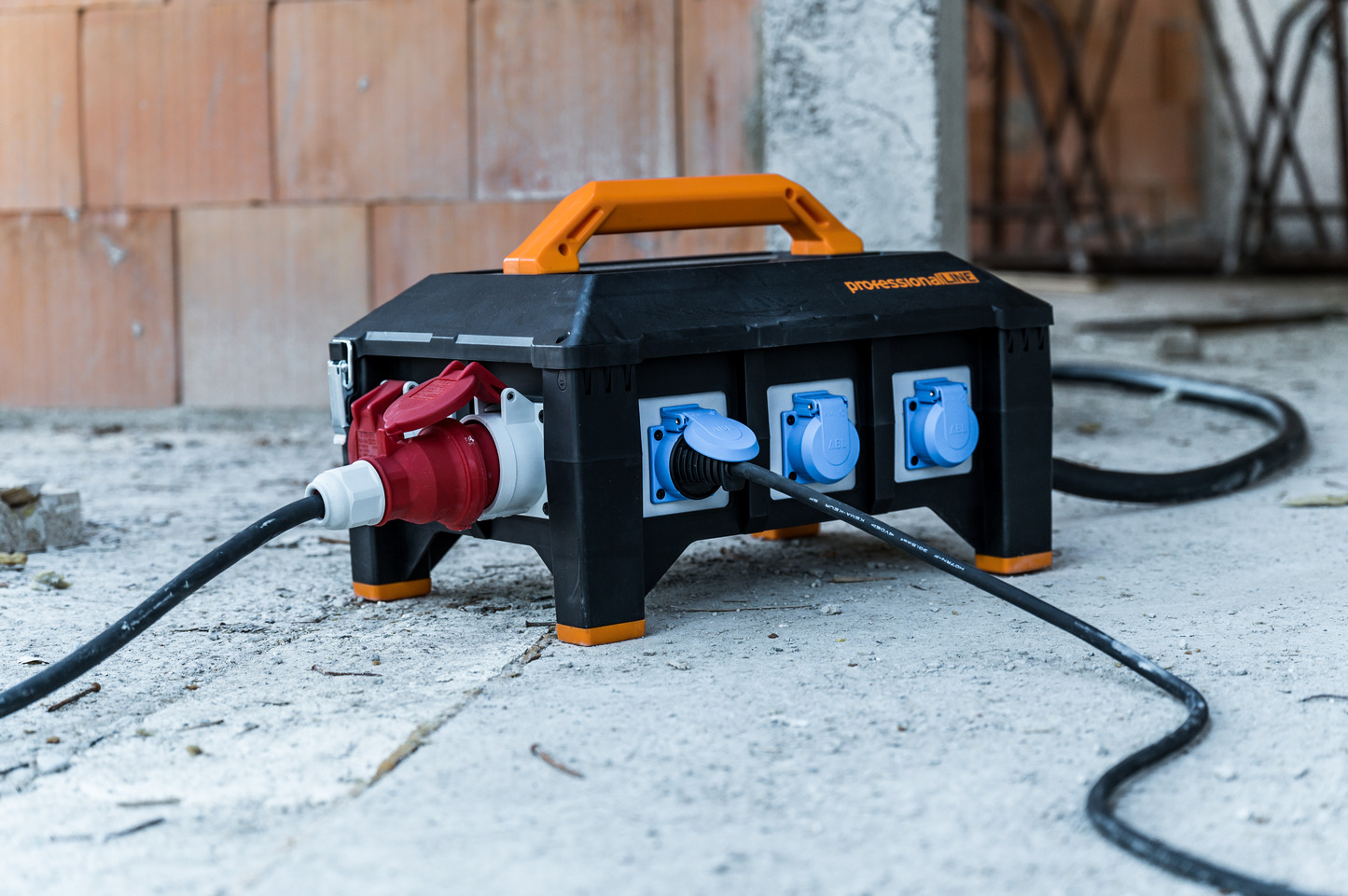

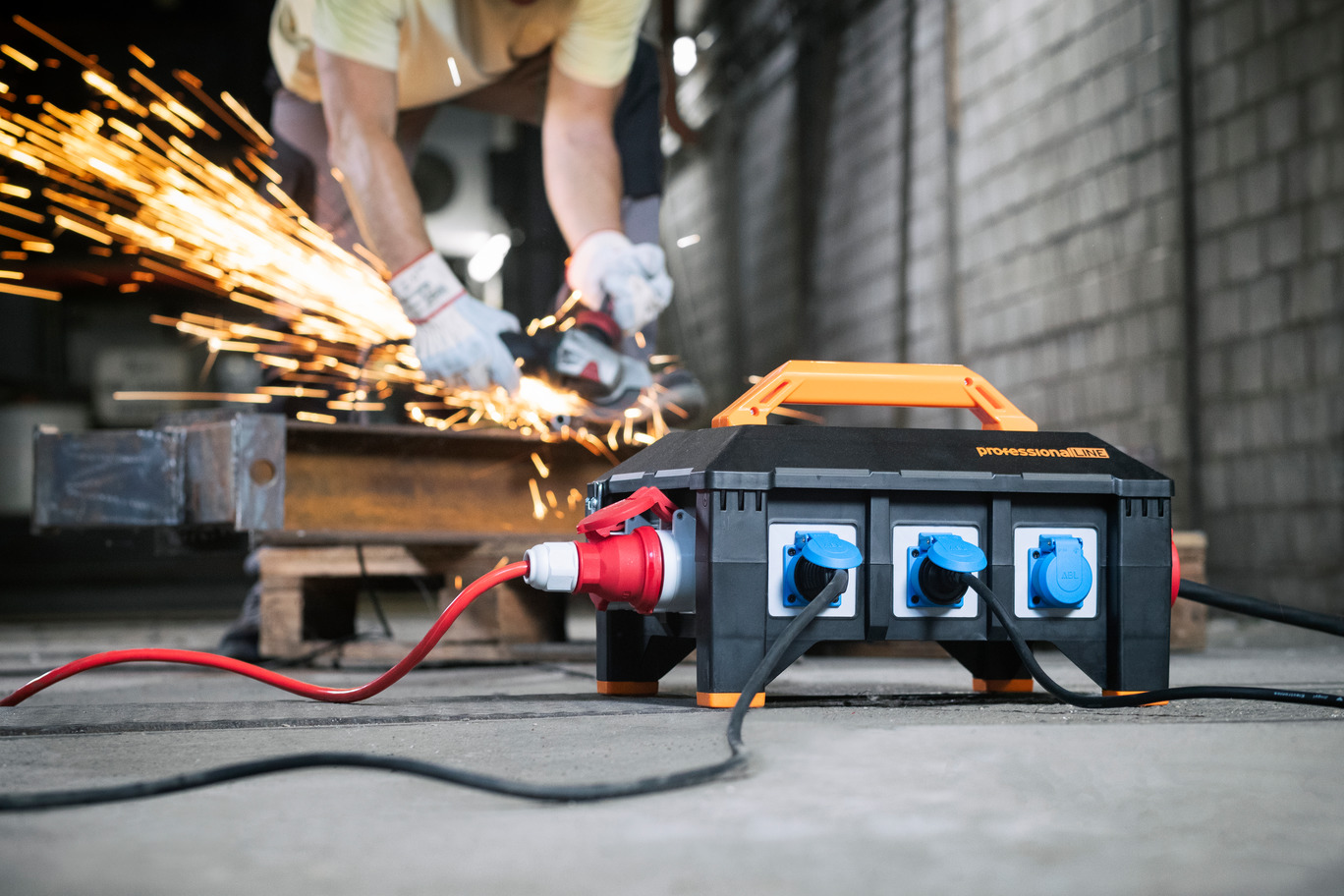

The professionalLINE rubber power distributor with 2m cable convinces with its quality and safety in all areas. It is ideal for permanent outdoor use. The mobile power distributor with splash-proof housing is temperature-resistant from -30°C to + 80°C and is also resistant to various oils, greases, petrol and acids. In addition, the power distributor has the following properties:
- Cable designation: H07RN-F 5G6.0

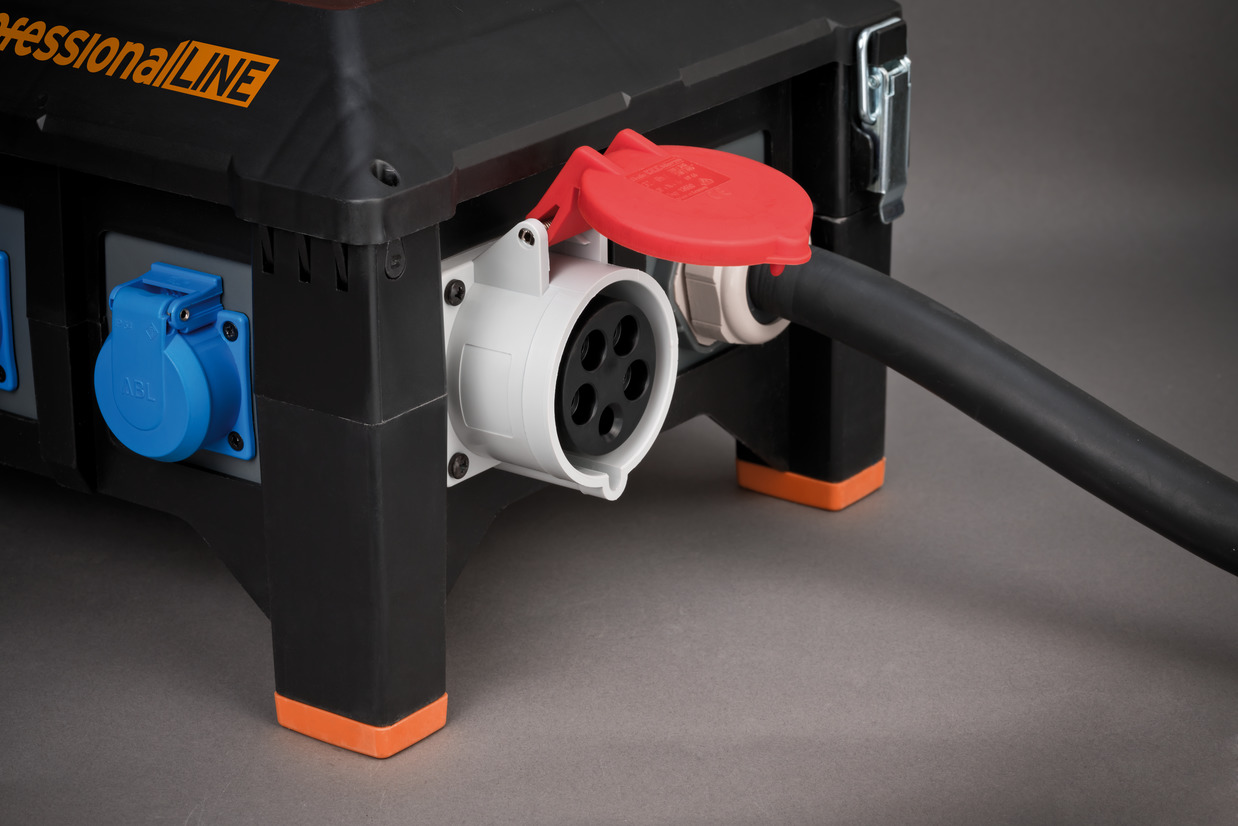

- Plug: CEE 400 V/32 A 5-pole/-pin

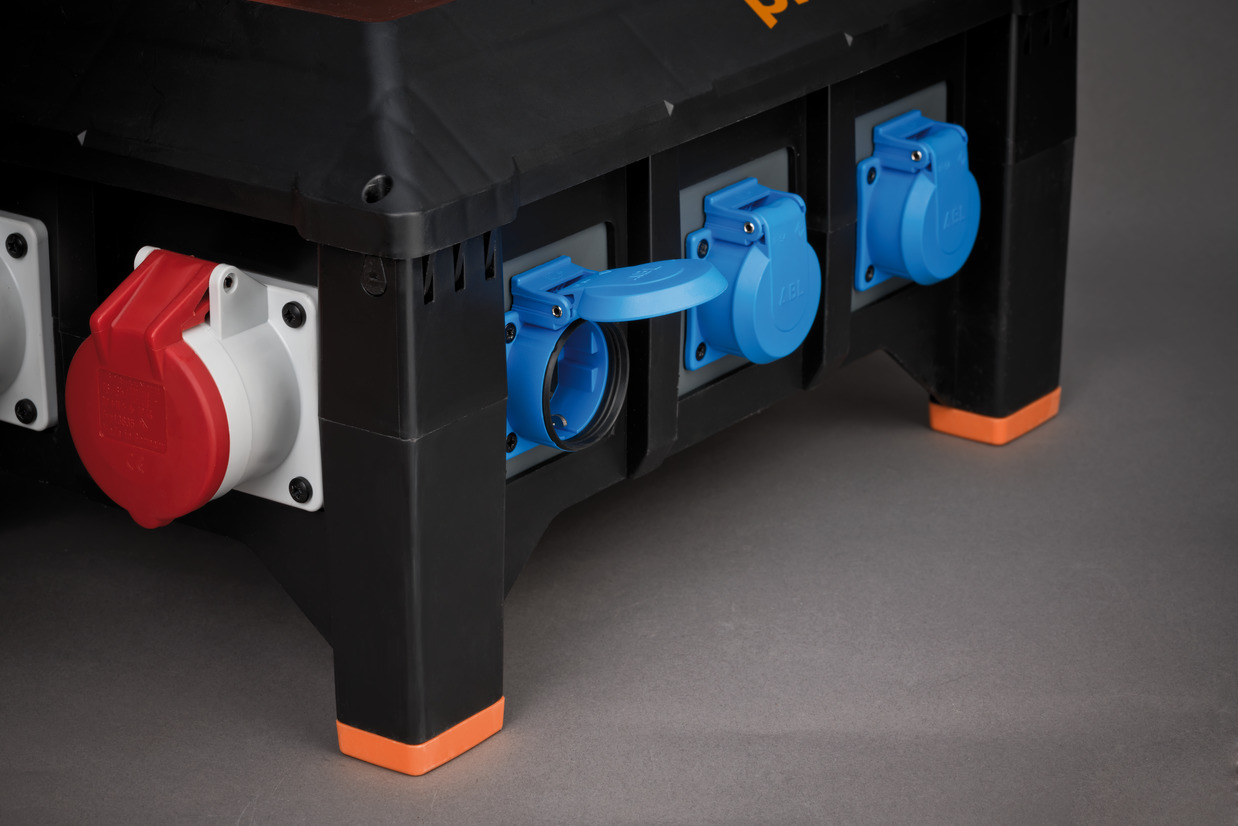

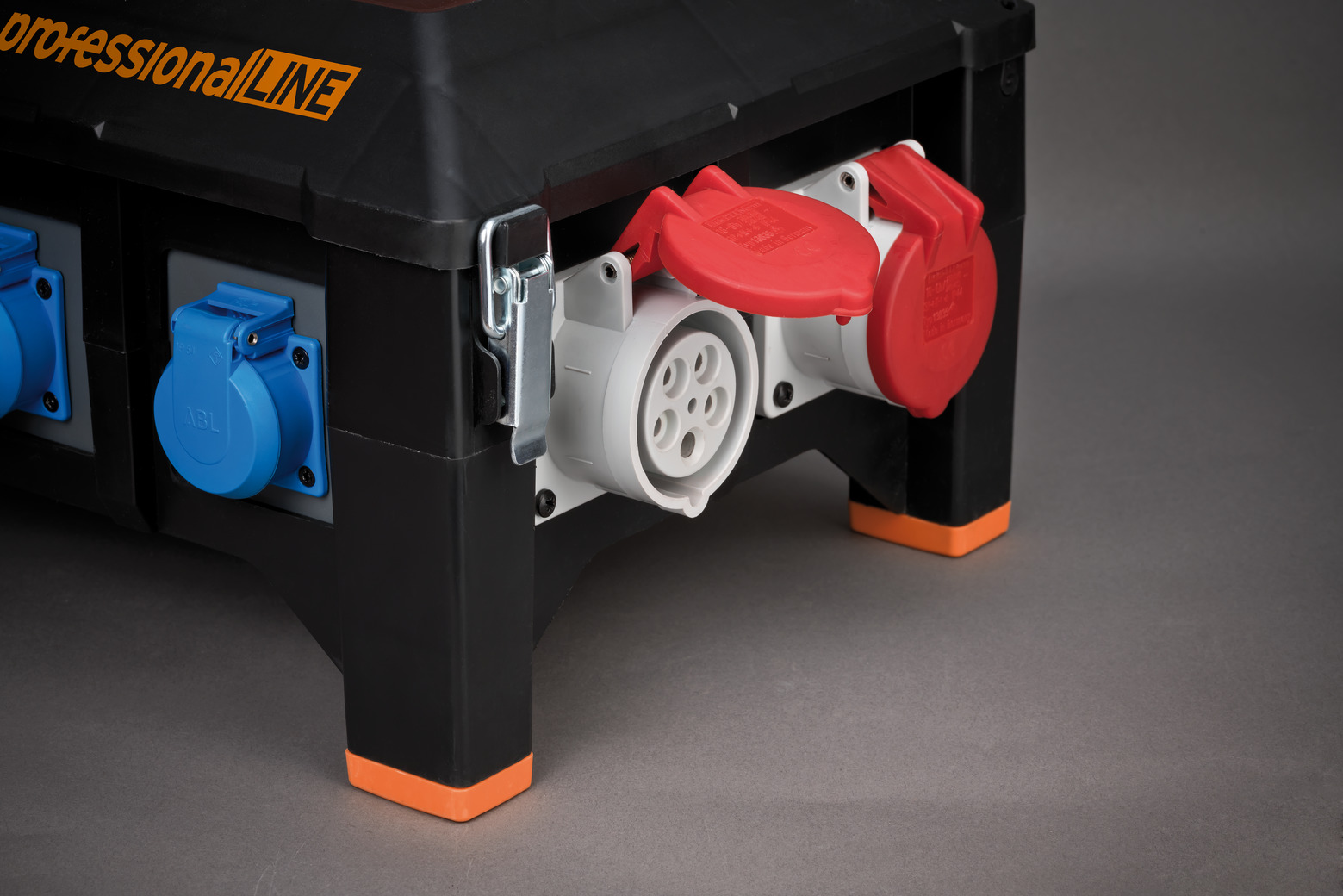

- Sockets: 1xCEE 400V/32 A 5-pole/-pin, 2xCEE 400V/16A 5-pole/-pin (individually fused), 6x earthed socket 230V (individually fused)

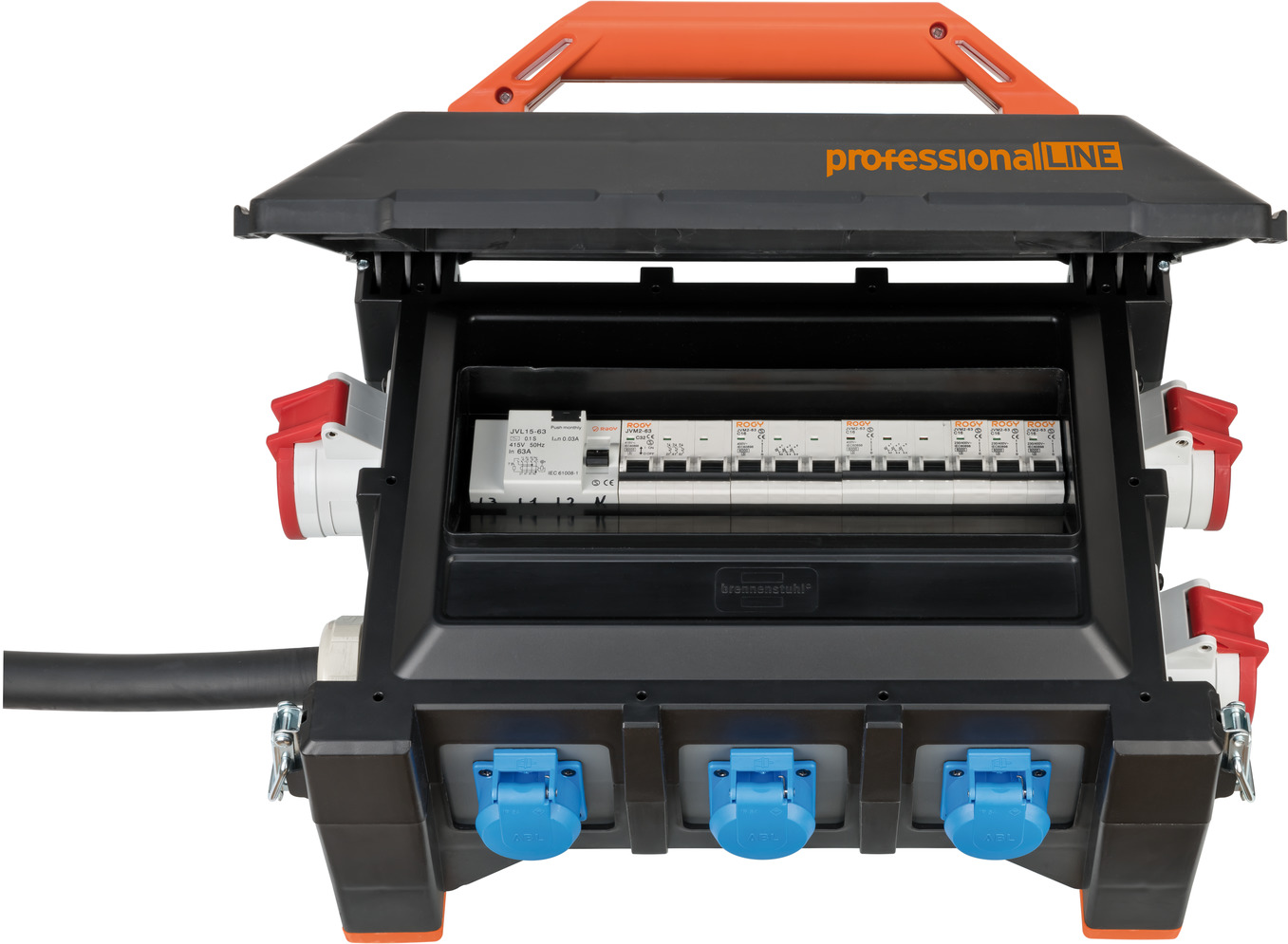

- Fuse elements (FI and LS switch) safely protected under the hinged cover
- Fuse protection: 2x LS 400V/16A 3-pole/-pin, 6x LS 230 V/16 A 1-pole/-pin, 1x FI 40 A 4-pole/-pin, 30 mA
Technical data
- Cable designation: H07RN-F 5G6,0
- Cable length: 2 m
- Cable quality: Rubber-Neoprene
- Height: 30 cm
- Length: 31 cm
- Weight: 7,71 kg
- Width: 53 cm
- Residual current circuit breaker (RCCB): FI with IFN 0.03 A (standard)
- Nominal input voltage: 400 V

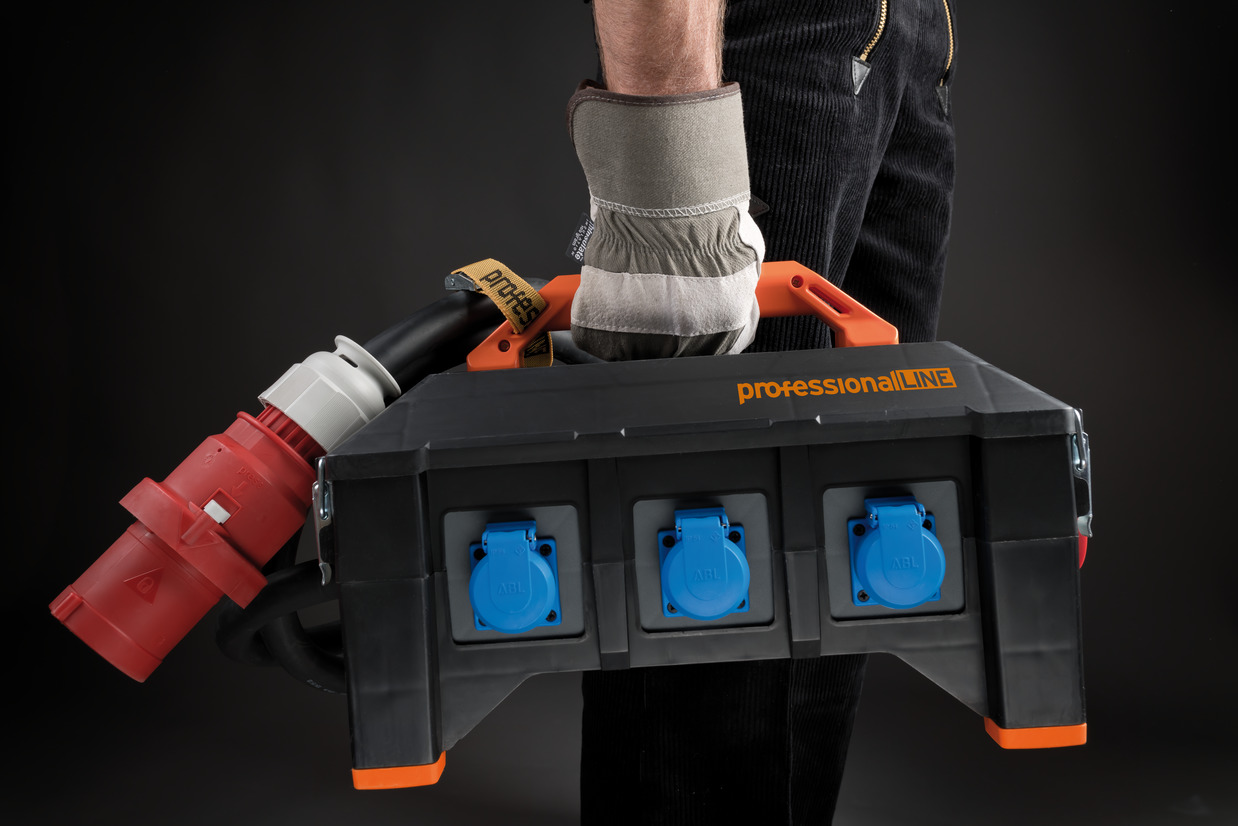

- With carrying handle:
- Housing material: Plastic/ rubber
- Number of CEE socket outlets total: 3
- Number of socket outlets total: 9
- Number of earthed socket outlets: 6
- Degree of protection (IP): IP44
- Suitable for outdoor area:
Downloads
All products are subject to technical changes
